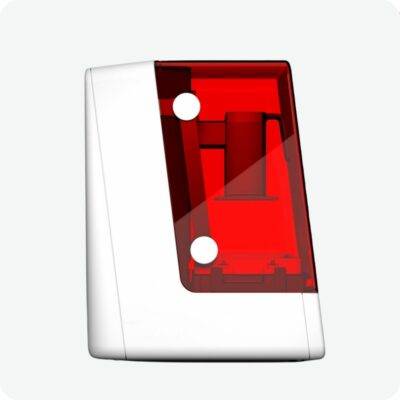

Asiga Ultra 3D Printer
Price range: $16,990.00 through $20,640.00
We Match Competitors Pricing for Asiga 3D Printers from Authorized Dealers
Lead Time is 6 – 8 Weeks
The Ultra series by Asiga presents their most precise 3D printers, giving users the flexibility to choose from customizable resolutions of either 32 or 50 microns, providing more options to meet diverse printing requirements.
3D Printing Trays
3D Printing Trays
3D Resins
3D Printing Trays
Asiga Ultra 3D Printer
Asiga Ultra 3D Printer is a high-precision DLP system designed for professional dental and industrial applications.
The printer delivers consistent accuracy and speed through advanced layer control, high-resolution imaging, and automated calibration. It supports a wide range of materials and ensures reliable performance for demanding production workflows.
Technology
- DLP (Digital Light Processing)
- Smart Positioning System (SPS™) for precise layer control
- High-resolution 4K imaging system
- DLP micromirror technology for reliable projection
Key Features
- Precise layer thickness control with SPS™ technology
- 4K imaging resolution for high detail accuracy
- Auto-calibrating UV LED system with integrated radiometer
- Stable and consistent printing performance
- Broad material compatibility (open material system)
- Compatible with multiple wavelengths
Build Volume
- Ultra (32): 119 × 67 × 130 mm
- Ultra (50): 189 × 106 × 130 mm
Resolution
- Pixel size: 32 µm (Ultra 32)
- Pixel size: 50 µm (Ultra 50)
Light Source
- UV LED: 385 nm (standard)
- Optional: 365 nm and 405 nm
Material Compatibility
- Open material system
- Compatible with over 500 validated resins
- Supports the use of third-party materials
Software & File Support
- Software: Asiga Composer (lifetime updates included)
- File formats: STL, SLC, PLY, STM
Connectivity
- WiFi
- Wireless Direct
- Ethernet
System Specifications
- Dimensions: 353 × 441 × 555 mm
- Weight: 32.5 kg
Power Requirements
- 100V ~ <5.0A
- 240V ~ <2.1A
- 50/60 Hz
Package Contents
- 3D printer
- Composer software
- 1 kg Asiga material
- 2 L build tray
- Flash post-curing chamber
- Calibration toolkit
Warranty & Support
- 12 months manufacturer warranty
- Lifetime technical support included
Recommended Equipment & Materials
3D Resins
Photopolymer resins designed for DLP 3D printing ensure accurate and reliable results.
3D Printing Trays
Build trays are required for material handling and consistent printing performance.
3D Cleaning Liquids
Cleaning solutions are used for post-processing and removal of uncured resin.
Curing Units
UV curing units are used for post-processing to fully harden printed parts and achieve final mechanical and material properties.
Additional Information
- For detailed material specifications and additional technical information, please refer to the official manufacturer page: https://www.asiga.com
- Asiga Ultra Brochure
Description
DLP (Digital Light Processing) Micromirror Technology
It functions as a vital element utilized in Asiga Ultra printers for additive manufacturing, specifically within the realm of 3D printing. Asiga Ultra printers utilize DLP technology to solidify photopolymer resin layer by layer, facilitating the fabrication of intricate and meticulously detailed objects.
Dentistry
Creating dental models, crowns, bridges, and orthodontic appliances demands precision. The printer's ability to capture fine details ensures that each item faithfully represents the patient's needs, elevating the quality of dental care provided.
Open Material System
This flexibility provides users with the liberty to experiment with a wide array of materials sourced from various manufacturers. The ability to choose the perfect material for each project promotes creativity and ensures the attainment of desired results.
SPS™ Smart-Positioning-System Technology
Fastest Material Changeover
Its quick material changeover feature allows users to switch between materials in under 30 seconds, minimizing downtime. This capability is particularly crucial in industries where rapid prototyping and production are vital.
Auto-Calibrating UV LED
This functionality integrates sensors and feedback mechanisms within the printer system to automatically monitor and adjust the output of the UV LEDs during printing. This guarantees consistent intensity and distribution of UV light throughout the printing process.
4K Imaging Resolution
The printer functions in a 4K mode, harnessing its ultra-high-definition resolution to produce intricate and detailed prints that capture even the most delicate design elements with precision.
| TECHNICAL SPECIFICATIONS | Ultra (32) | Ultra (50) | |
|---|---|---|---|
| Build Volume X, Y, Z | 121 × 68 × 145 mm 4.76 × 2.67 × 5.78 inches |
192 × 108 × 145mm 7.55 × 4.25 × 5.78 inches |
|
| Pixel Resolution | 32µm | 50µm | |
| Technology | DLP | ||
| LED Wavelength | 385nm (365nm and 405nm available on request) | ||
| Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material | ||
| Software | Asiga Composer software. Lifetime updates included | ||
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) | ||
| Network Compatibility | Wifi, Wireless Direct, Ethernet | ||
| Power Requirements | 100-240VAC / 500Watts | ||
| Dimension | 353 x 441 x 555mm | Weight 32.5Kg .. 13.9 x 17.3 x 21.8 inches | Weight 71.5 Lbs | ||
| Package Dimension | 485 × 615 × 799mm | Weight 44 Kg .. 19 × 24.21 × 31.45 inches | Weight 97 Lbs | ||
| Warranty | 12 months manufacturer’s warranty | ||
| Technical Support | 12 months Articon technical support included | ||
| Bundle Includes | 3D printer, Composer software, 1 kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit | ||
Printer Setup and Post-Processing Preparations
Select a stable and tidy area for the Printer.
It’s best to have a desk or cabinet situated away from any sources of vibration or dust.
Avoid placing your 3D printer near a milling machine, as it could lead to performance problems.
Procure Post Processing supplies:
- Nitrile Gloves
- Paper Towel
- 98%+ Isopropyl Alcohol (IPA)
Arrange a clean, dry spot away from direct sunlight to store resin bottles and trays.
The Asiga Ultra is delivered in several packages
| Ultra | Box 1 | Box 2 |
|---|---|---|
| Dimensions | 62 x 50 x 80 cm 24.4 x 19.6 x 31 inches |
|
| Weight | 42 Kg/ 105 lbs | 3.9 Kg/ 8.5 lbs |
| Contents | Ultra | Flash, Build Tray & 1 kg. Material Bottle |
| Weight | 71.5 lbs |
|---|---|
| Dimensions | 13.9 × 17.3 × 21.8 in |
| 3D Printers | Asiga Ultra |
| Microns | 32 Microns, 50 Microns |
| Otoflash Curing Unit | No, Otoflash with N2 Hook-up (+$3,650), Otoflash w/o N2 Hook-up (+$2,950) |
Brand
Asiga
